2022

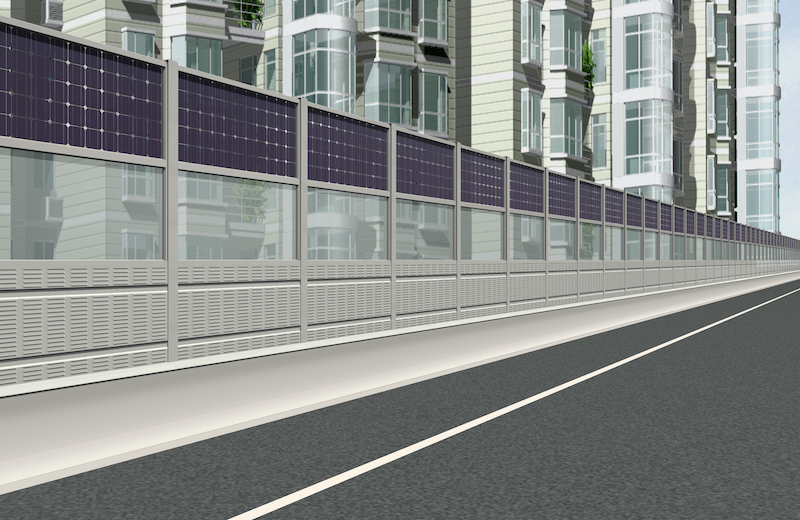

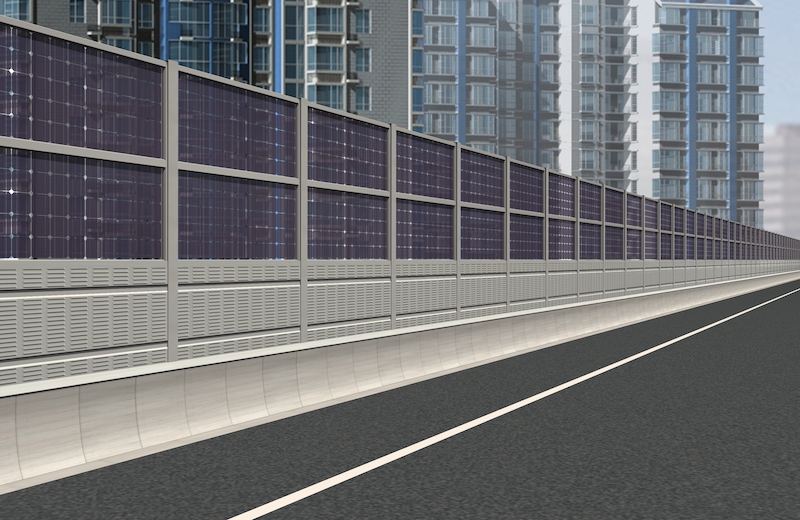

01-BIPV-Railings
Name: BIPV Railings Location: Wuxi city, China Date: 08/2022 Total Power: 1,848 Wp
PV PANEL
SI-ESF-M-BIPV-BL-RL-M140-552
+ 6 mm tempered glass, anti-slip
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 140x5 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1000 x 1000 x 14 mm
Matrix: 6 x 92
Transparency: 60%
Power: 77 Wp
Quantity: 24 pcs
Catalogue (pdf)

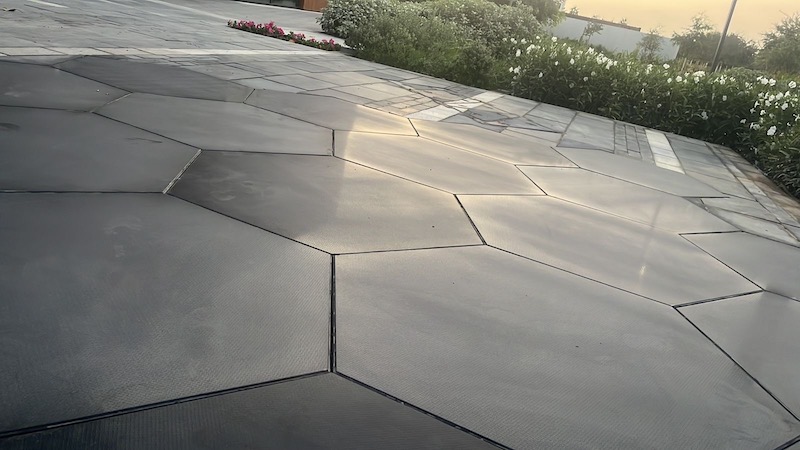

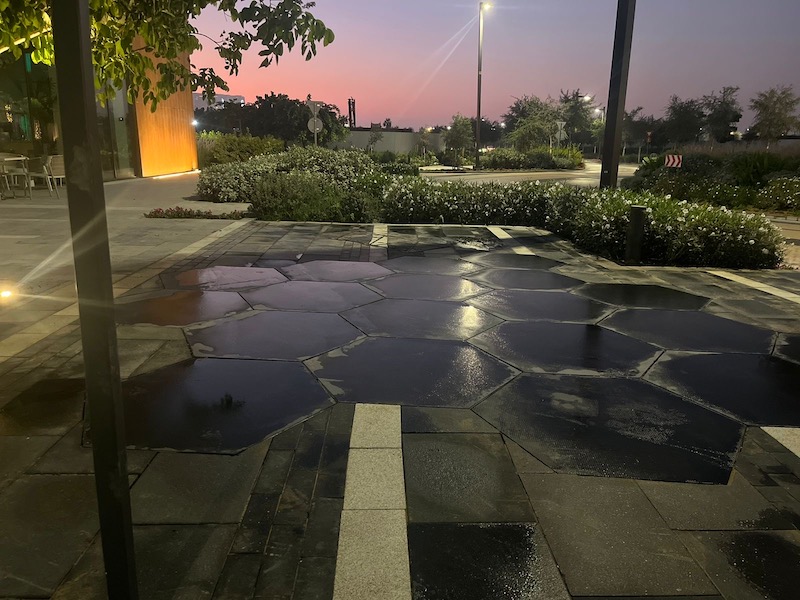

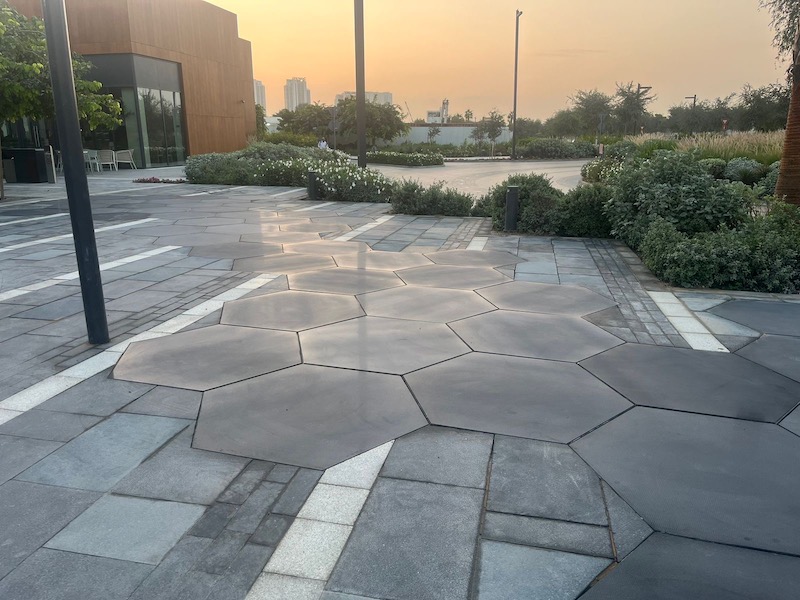

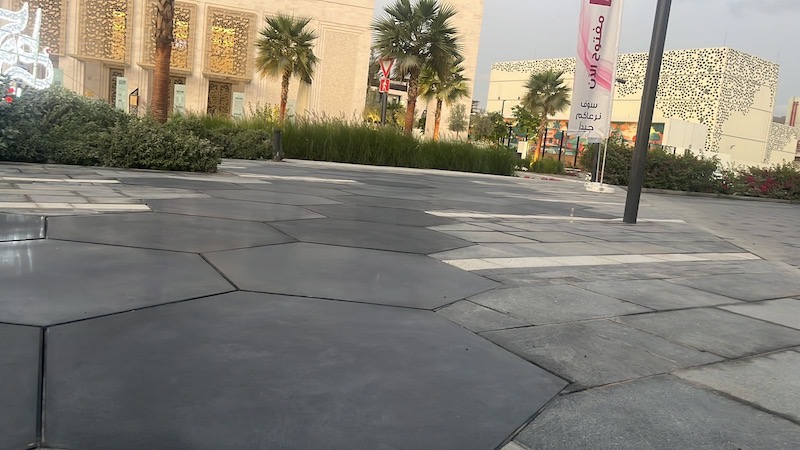

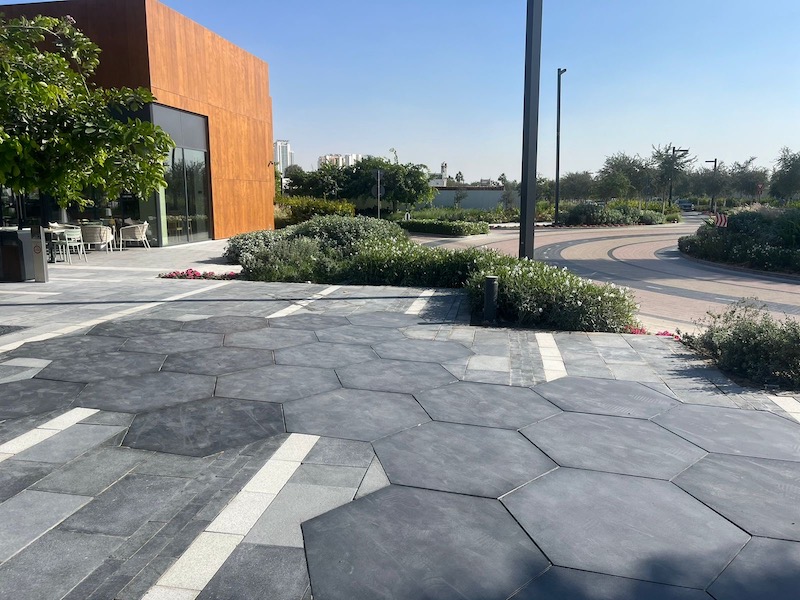

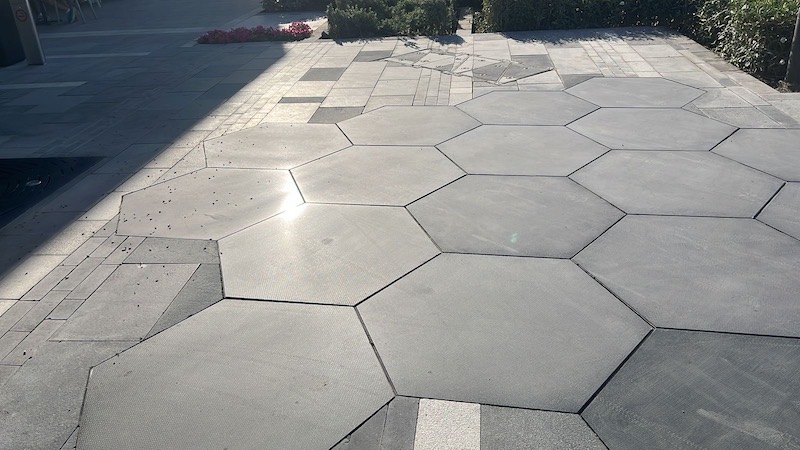

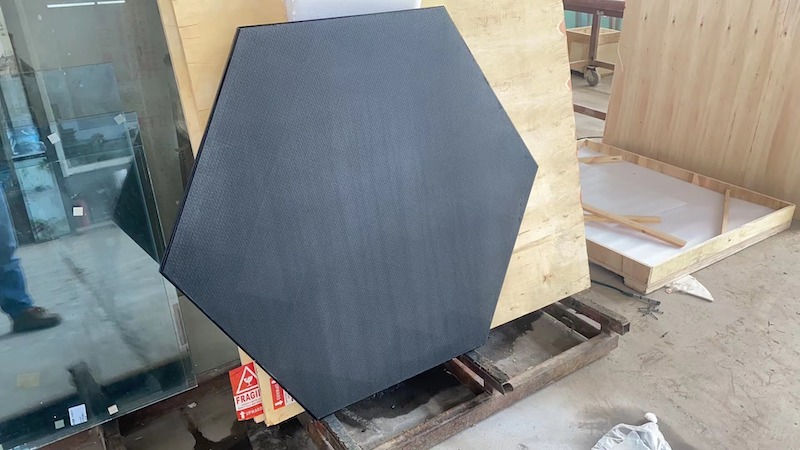

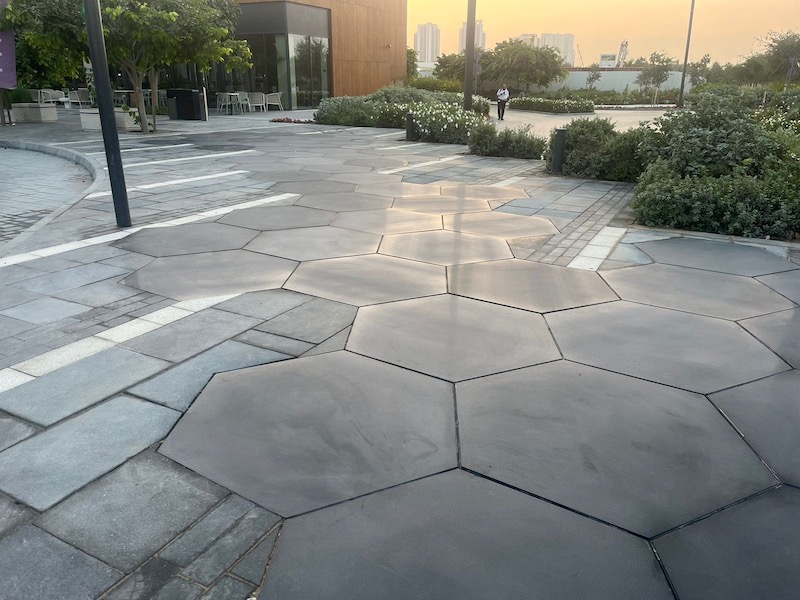

01-BIPV-Floor Tiles
Name: Floor Tiles Location: Wuxi city, China Date: 01/2022 Total Power: 9,870 Wp
PV PANEL
SI-ESF-M-BIPV-FL-M156-15
+ 8 mm tempered glass, anti-slip
+ 1.52 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 1.52 mm PVB layer
+ 10 mm tempered glass
= 21.25 mm
Size: 600 L x 21 mm
Matrix: 5 x 3
Transparency: 0%
Power: 235 Wp
Quantity: 42 pcs
Catalogue (pdf)
2021

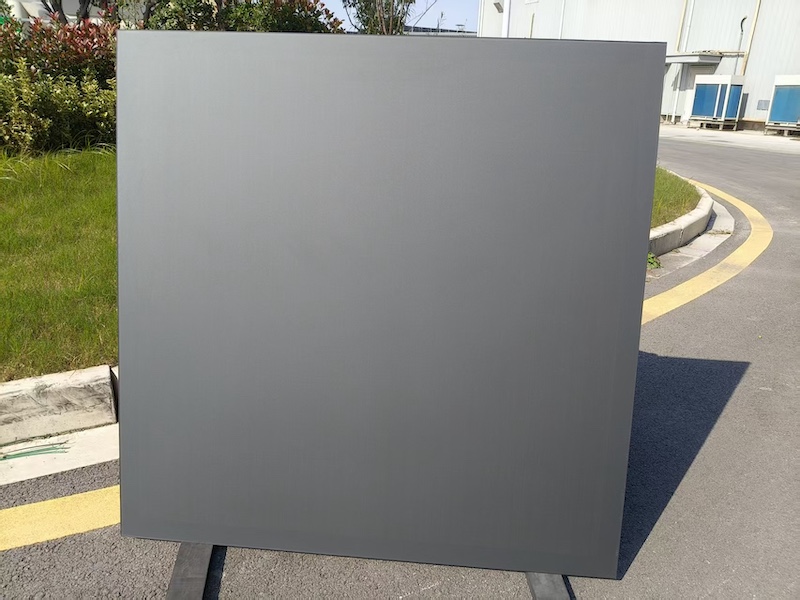

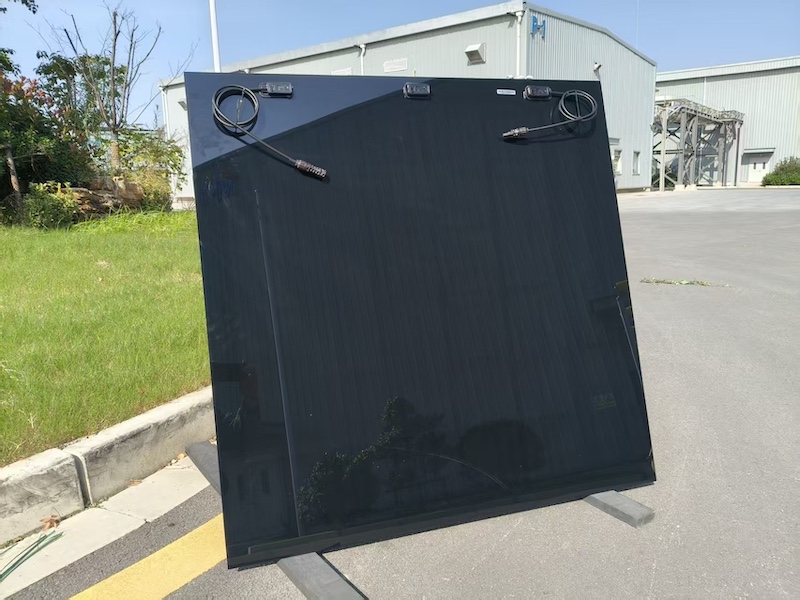

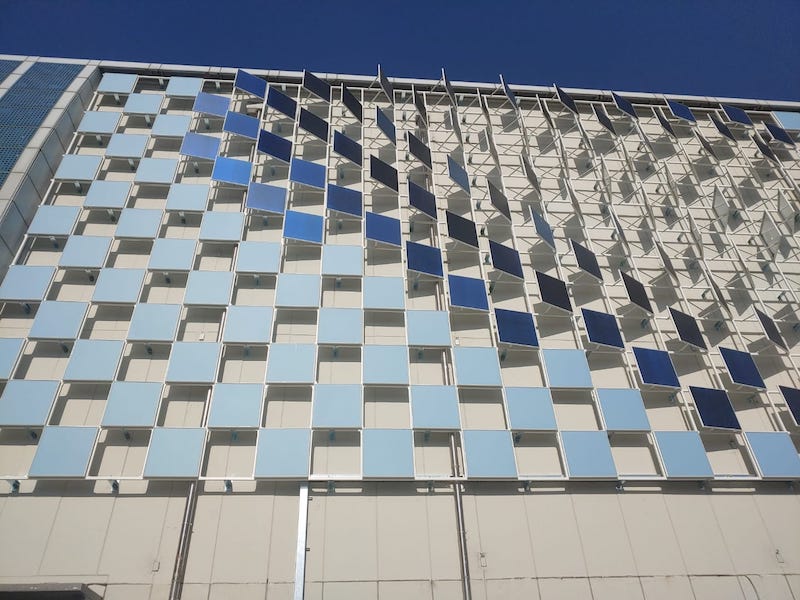

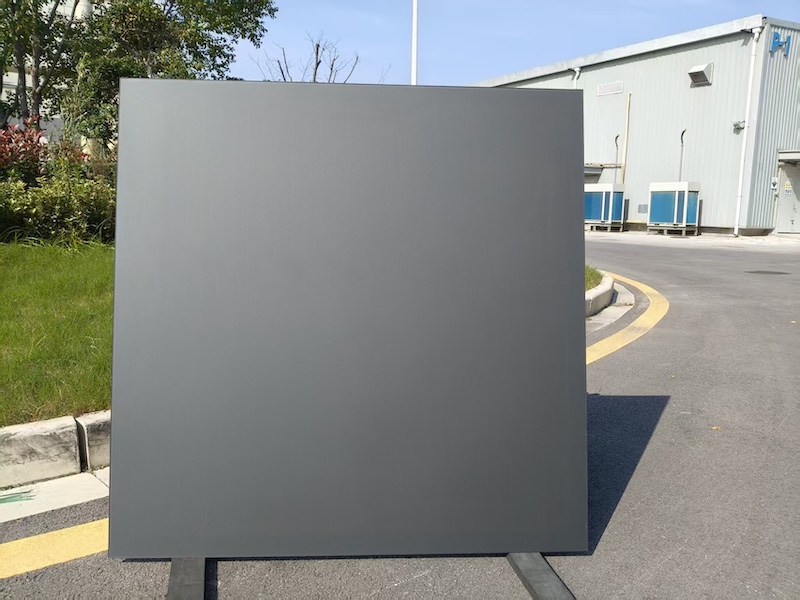

12-BIPV-Color-Facades
Name: Facades Location: Wuxi city, China Date: 12/2021 Total Power: 12,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-48-COLORS-TOTAL-RAL-3031
+ 6 mm tempered glass coloured
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1000 x 2000 x 14 mm
Matrix: 6 x 8
Transparency: 0%
Power: 200 Wp
Quantity: 60 pcs

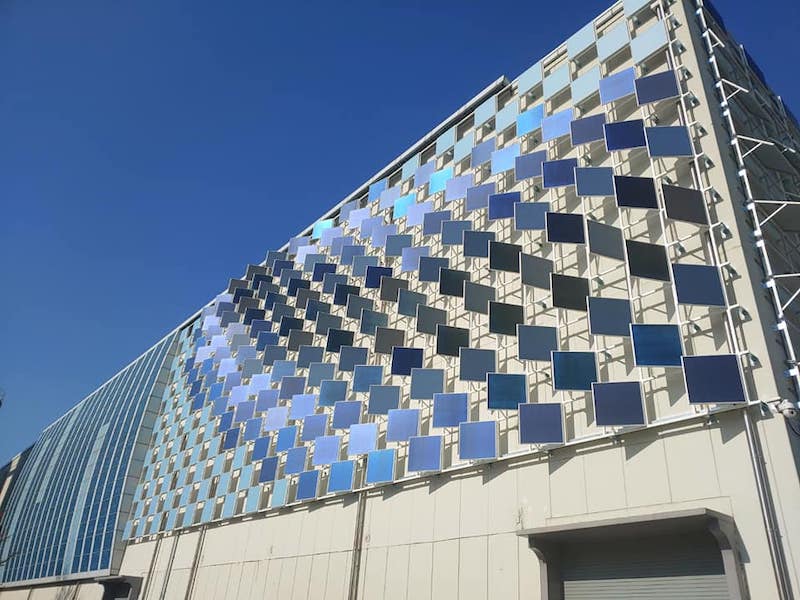

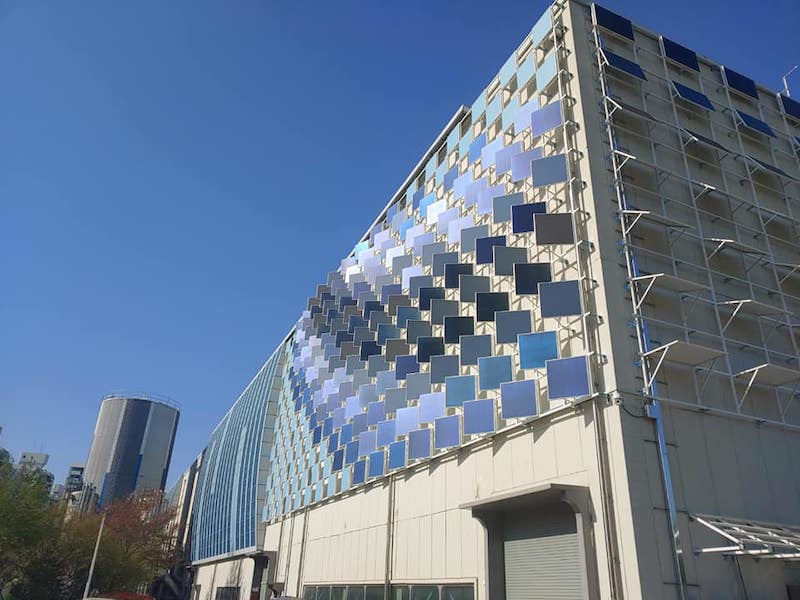

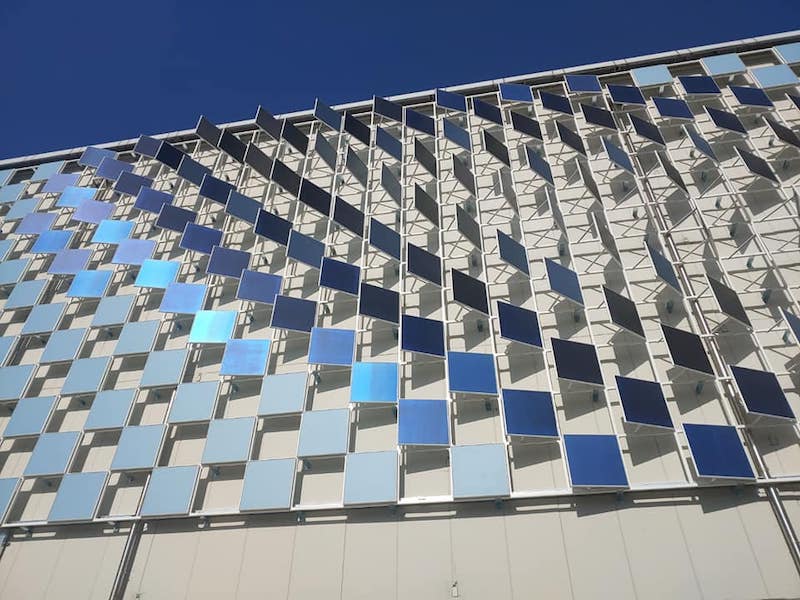

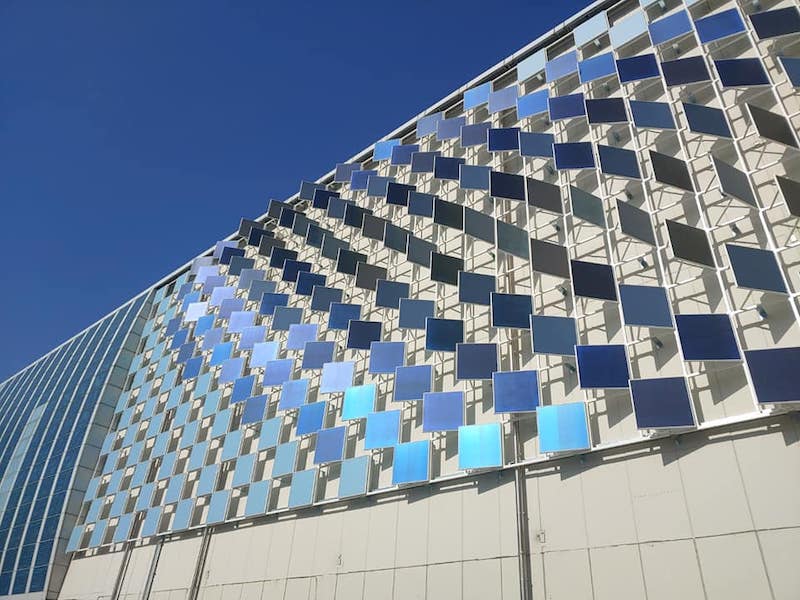

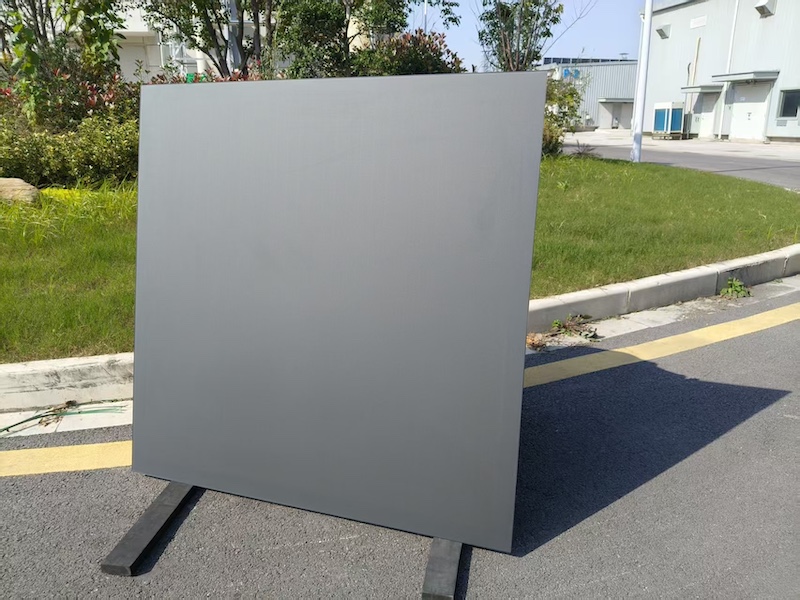

11-BIPV-Color-Facades
Name: Facades Location: Wuxi city, China Date: 11/2021 Total Power: 250,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-72-COLORS-TOTAL-RAL-3031
SI-ESF-M-BIPV-CT-M156-72-COLORS-TOTAL-RAL-8023
SI-ESF-M-BIPV-CT-M156-72-COLORS-TOTAL-RAL-6000
SI-ESF-M-BIPV-CT-M156-72-COLORS-TOTAL-RAL-4008
SI-ESF-M-BIPV-CT-M156-72-COLORS-TOTAL-RAL-5024
SI-ESF-M-BIPV-CT-M156-72-COLORS-TOTAL-RAL-5017
+ 6 mm tempered glass coloured
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1000 x 2000 x 14 mm
Matrix: 6 x 12
Transparency: 0%
Power: 250 Wp
Quantity: 1000 pcs
09-BIPV-Shopping Mall
Name: Roof Location: Chongqing city, China Date: 09/2021 Total Power: 216,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-36
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1200 x 1200 x 14 mm
Matrix: 6 x 6
Transparency: 40%
Power: 180 Wp
Quantity: 1200 pcs
Catalogue (pdf)
2020
09-BIPV-Roof
Name: Roof Location: Suzhou city, Jiangsu Province, China Date: 09/2020 Total Power: 96,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-64
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 17.73 mm
Size: 1400 x 1400 x 18 mm
Matrix: 8 x 8
Transparency: 20%
Power: 300 Wp
Quantity: 320 pcs
10-BIPV-Train Station-Roof
Name: Roof Location: Guangzhou city, China Date: 10/2020 Total Power: 118,800 Wp
PV PANEL
SI-ESF-M-BIPV-CT-CDTE-3
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 3.2 mm tempered glass CdTe pv cells
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1800 x 1200 x 19 mm
Matrix: 3
Transparency: 10%
Power: 165 Wp
Quantity: 720 pcs
09-BIPV-Roof
Name: Roof Location: Chongqing city, China Date: 09/2020 Total Power: 32,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-36
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1200 x 1200 x 14 mm
Matrix: 6 x 6
Transparency: 40%
Power: 160 Wp
Quantity: 200 pcs
01-BIPV-Hotel
Name: BIPV Hotel Roof Location: Shanghai city, China Date: 01/2020 Total Power: 14,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-30
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1300 x 1200 x 14 mm
Matrix: 6 x 5
Transparency: 50%
Power: 140 Wp
Quantity: 100 pcs
2019
12-BIPV-Funeral Home
Name: BIPV Funeral Home Location: Nanchang city, Jiangxi province, China Date: 12/2019 Total Power: 615,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 3.2 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 3.2 mm tempered glass
= 8.13 mm
Size: 1000 x 1667 x 8 mm
Matrix: 6 x 10
Transparency: 0%
Power: 300 Wp
Quantity: 2050 pcs
11-BIPV-House Roof Tiles
Name: BIPV Roof Tiles Location: Wuxi city, Jiangsu province, China Date: 11/2019 Total Power: 4,000 Wp
PV PANEL
SI-ESF-M-BIPV-TL-M156-8V
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
= 9.73 mm
Size: 410 x 705 x 10 mm
Matrix: 2 x 4
Transparency: 0%
Power: 40 Wp
Quantity: 100 pcs
03-BIPV-Concert Hall
Name: BIPV Concert Hall Location: Haikou city, Hainan province, China Date: 03/2019 Total Power: 115,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P156-60
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1667 x 1000 x 14 mm
Matrix: 10 x 6
Transparency: 10%
Power: 270 Wp
Quantity: 427 pcs
02-BIPV Factory Facade
Name: BIPV Factory Facade Location: Shanghai city, Jiangsu Province, China Date: 02/2019 Total Power: 60,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1667 x 1000 x 14 mm
Matrix: 10 x 6
Transparency: 0%
Power: 300 Wp
Quantity: 120 pcs

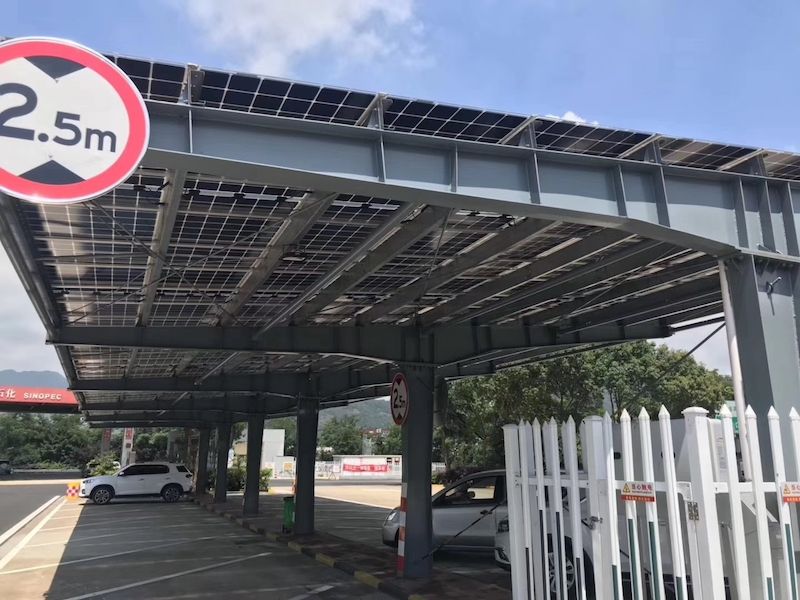

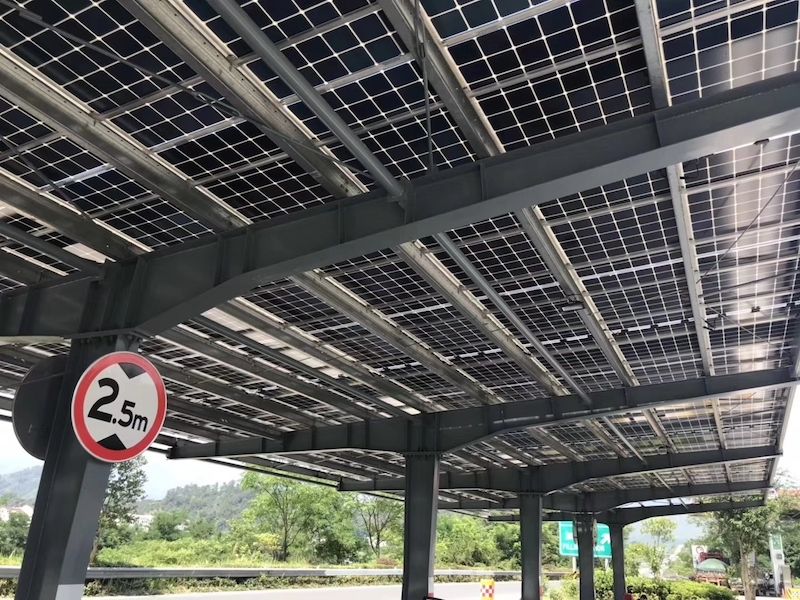

01-BIPV Parking
Name: BIPV Parking Location: Wuxi city, Jiangsu province, China Date: 01/2019 Total Power: 60,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
= 9.73 mm
Size: 1658 x 992 x 10 mm
Matrix: 10 x 6
Transparency: 10%
Power: 300 Wp
Quantity: 200 pcs
2018
12-BIPV Shopping Mall
Name: BIPV Shopping Mall Location: Nanging city, Jiangsu province, China Date: 12/2018 Total Power: 56,160 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P156-60
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 2000 x 1500 x 14 mm
Matrix: 9 x 6
Transparency: 30%
Power: 270 Wp
Quantity: 208 pcs
11-BIPV House Roof
Name: BIPV House Roof Location: Wuxi city, Jiangsu province, China Date: 11/2018 Total Power: 20,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-42
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1200 x 1000 x 14 mm
Matrix: 7 x 6
Transparency: 30%
Power: 200 Wp
Quantity: 200 pcs
10-BIPV Hotel Facade
Name: BIPV Hotel Facade Location: Wuxi city, Jiangsu province, China Date: 10/2018 Total Power: 151,761 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P156-60
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
= 9.73 mm
Size: 1650 x 1000 x 10 mm
Matrix: 10 x 6
Transparency: 10%
Power: 270 Wp
Quantity: 560 pcs
09-Sunlight House
Name: Sunlight House Location: Wuxi city, Jiangsu province, China Date: 09/2018 Total Power: 9,900 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-36
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1200 x 1200 x 14 mm
Matrix: 6 x 6
Transparency: 40%
Power: 180 Wp
Quantity: 55 pcs
Catalogue (pdf)
08-Hotel
Name: Hotel Location: Nanning city, Jiangsu province, China Date: 08/2018 Total Power: 100,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-54
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1700 x 1000 x 14 mm
Matrix: 10 x 6
Transparency: 14%
Power: 265 Wp
Quantity: 378 pcs
07-Factory
Name: Roof Location: Shanghai city, Jiangsu Province, China Date: 07/2018 Total Power: 159,900 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-42
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1500 x 1300 x 14 mm
Matrix: 7 x 6
Transparency: 40%
Power: 195 Wp
Quantity: 820 pcs
Catalogue (pdf)
05-02-Carport
Name: Parking Location: Wuxi city, Jiangsu province, China Date: 05/2018 Total Power: 54,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 3.2 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 3.2 mm tempered glass
= 8.13 mm
Size: 1650 x 1000 x 8 mm
Matrix: 6 x 10
Transparency: 10%
Power: 270 Wp
Quantity: 200 pcs
05-01-Balcony
Name: Balcony Location: Wuxi city, Jiangsu province, China Date: 05/2018 Total Power: 36,800 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-54
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1800 x 1000 x 14 mm
Matrix: 6 x 9
Transparency: 15%
Power: 230 Wp
Quantity: 160 pcs
2017
06-Building Facade
Name: Building Facade Location: Nanjing city, Jiangsu province, China Date: 06/2017 Total Power: 204,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
+ 12 mm air chamber
+ 6 mm tempered glass
= 31.73 mm
Size: 1658 x 992 x 32 mm
Matrix: 6 x 10
Transparency: 10%
Power: 255 Wp
Quantity: 800 pcs
03-Hotel
Name: Hotel Canopy Location: Suzhou city, Jiangsu province, China Date: 03/2017 Total Power: 300,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline PV cells 156x156 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 17.73 mm
Size: different
Transparency: 50%
Power: 100,000 Wp
Quantity: 360 pcs
Catalogue (pdf)
2015
01-BIPV-Natural History Museum
Name: BIPV Natural History Museum Roof Location: Shanghai city, China Date: 01/2015 Total Power: 44,500 Wp
PV PANEL-1
SI-ESF-M-BIPV-CT-M125-91
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 2500 x 1300 x 14 mm
Matrix: 13 x 7
Transparency: 50%
Power: 225 Wp
Quantity: 100 pcs
PV PANEL-2
SI-ESF-M-BIPV-CT-M125-88
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 2000 x 1300 x 14 mm
Matrix: 11 x 8
Transparency: 50%
Power: 220 Wp
Quantity: 100 pcs
2014
12-BIPV Skylight of Villa
Name: Building Facade Location: Guangdong province, China Date: 12/2014 Total Power: 2,500 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-42
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1700 x 1000 x 14 mm
Matrix: 6 x 7
Transparency: 45%
Power: 180 Wp
Quantity: 14 pcs
2013
10-02-Agricultural Greenhouse
Name: Agricultural Greenhouse Location: Jiangsu province, China Date: 10/2013 Total Power: 10,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P156-32
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1600 x 800 x 14 mm
Matrix: 4 x 8
Transparency: 40%
Power: 135 Wp
Quantity: 74 pcs
10-01-Eaves
Name: Eaves of villa Location: Jurong city, Jiangsu Province, China Date: 10/2013 Total Power: 30,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-54
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1160 x 1260 x 14 mm
Matrix: 6 x 7
Transparency: 45%
Power: 180 Wp
Quantity: 132 pcs
09-Bike Shelter
Name: Bike Shelter Location: Shenzhen city, Guangdong Province, China Date: 09/2013 Total Power: 85,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P125-70
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
= 9.73 mm
Size: 2000 x 1000 x 10 mm
Matrix: 7 x 10
Transparency: 40%
Power: 195 Wp
Quantity: 436 pcs
07-04-Jinan Electric Power Design Institute
Name: Jinan Electric Power Design Institute Location: Qingdao city, Shandong province, China Date: 07/2013 Total Power: 1,426,863 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M56-48
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1610 x 1514 x 14 mm
Matrix: 8 x 6
Transparency: 35%
Power: 170 Wp
Quantity: 8,393 pcs
07-03-Center of Hang Lung Properties
Name: Center of Hang Lung Properties Location: Wuxi city, Jiangsu Province, China Date: 07/2013 Total Power: 38,775 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-42
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1700 x 600 x 14 mm
Matrix: 6 x 7
Transparency: 35%
Power: 150, 160, 195 Wp
Quantity: 200 pcs
07-02-Xintiandi
Name: Xintiandi Location: Shanghai city, Jiangsu Province, China Date: 07/2013 Total Power: 64,275 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-20
+ 5 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 14.73 mm
Size: 1700 x 380 x 15 mm
Matrix: 2 x 10
Transparency: 35%
Power: 100 Wp
Quantity: 857 pcs
07-01-Guorui Square
Name: Guorui Building Location: Beijing city, China Date: 07/2013 Total Power: 91,920 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 8 mm colored tempered glass
+ 12 mm Argon gas
+ 8 mm tempered glass Low-E
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 46.49 mm
Size: 2500 x 1600 x 48 mm
Matrix: 6 x 10
Transparency: 60%
Power: 240 Wp
Quantity: 383 pcs
04-Central Southern China Electric Power Design Institute of CPECC
Name: Central Southern China Electric Power Design Institute of CPECC Location: Wuhan city, Hubei province, China Date: 04/2013 Total Power: 45,435 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M125-80
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1480 x 1300 x 14 mm
Matrix: 8 x 10
Transparency: 45%
Power: 195 Wp
Quantity: 233 pcs
2012
12-Wenzhou Science and Technology Museum
Name: Wenzhou Science and Technology Museum Location: Wenzhou city, Zhejiang province, China Date: 12/2012 Total Power: 132,480 Wp
PV PANEL-1
SI-ESF-M-BIPV-CT-M156-60
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 8 mm colored tempered glass
= 17.73 mm
Size: 1940 x 1290 x 18 mm
Matrix: 6 x 10
Transparency: 40%
Power: 210 Wp
Quantity: 48 pcs
PV PANEL-2
SI-ESF-M-BIPV-CT-M156-48
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 8 mm colored tempered glass
= 17.73 mm
Size: 1607 x 1290 x 18 mm
Matrix: 6 x 8
Transparency: 40%
Power: 170 Wp
Quantity: 720 pcs
Catalogue (pdf)
06-Seiko Steel
Name: Seiko Steel Location: Hangzhou city, Zhejiang province, China Date: 06/2012 Total Power: 10,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-40
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 17.73 mm
Size: 1800 x 995 x 18 mm
Matrix: 5 x 8
Transparency: 50%
Power: 240 Wp
Quantity: 44 pcs
Catalogue (pdf)
05-Huaqiao Business Center
Name: Huaqiao Business Center Location: Kunshan city, Jiangsu province, China Date: 05/2012 Total Power: 45,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M125-60
+ 6 mm tempered glass high-transparency
+ 2.28 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 2.28 mm PVB layer
+ 6 mm tempered glass
= 16.77 mm
Size: 2070 x 447 x 12 mm
Matrix: 6 x 10
Transparency: 35%
Power: 170 Wp
Quantity: 264 pcs
03-China Telecom, Information Park
Name: China Telecom Information Park Location: Pudong New Area, Shanghai city, Jiangsu Province, China Date: 03/2012 Total Power: 10,560 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M125-96
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 17.73 mm
Size: 1985 x 1493 x 18 mm
Matrix: 8 x 12
Transparency: 50%
Power: 240 Wp
Quantity: 44 pcs
Catalogue (pdf)
01-Sunlight Room
Name: Sunlight Room Location: Haidian city, Beijing province, China Date: 01/2012 Total Power: 20,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M125-28
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
= 9.73 mm
Size: 1200 x 1245 x 10 mm
Matrix: 6 x 5
Transparency: 50%
Power: 120 Wp
Quantity: 804 pcs
2011
10-Shaanxi Coal and Chemical Industrial Group Co Ltd
Name: Shaanxi Coal and Chemical Industrial Group Co Ltd Location: Xian city, Shaanxi province, China Date: 10/2011 Total Power: 196,200 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M125-72
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1440 x 1554 x 14 mm
Matrix: 8 x 9
Transparency: 50%
Power: 180 Wp
Quantity: 1090 pcs
Catalogue (pdf)
06-Distribution Park
Name: Distribution Park Location: Suzhou city, Jiangsu province, China Date: 06/2011 Total Power: 28,800 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M125-60
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1630 x 1060 x 14 mm
Matrix: 6 x 10
Transparency: 45%
Power: 150 Wp
Quantity: 192 pcs
Hong Kong
2013
01-PVNB Speedway
Name: PVNB Speedway Hong Kong Location: Hong Kong city, China Date: 01/2013 Total Power: 15,038 Wp
PV PANEL-1
SI-ESF-M-BIPV-CT-M125-27
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 17.73 mm
Size: 1800 x 995 x 18 mm
Matrix: 3 x 9
Transparency: 53%
Power: 73 Wp
Quantity: 98 pcs
Total Power: 15,038 Wp
PV PANEL-2
SI-ESF-M-BIPV-CT-M125-27
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 125x125 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 17.73 mm
Size: 1800 x 495 x 18 mm
Matrix: 3 x 9
Transparency: 77%
Power: 73 Wp
Quantity: 108 pcs
Catalogue (pdf)
Indonesia
2019
10-The Grand Mansion Hotel Jakarta
Name: Building Roof Top Location: Java Central Date: 10/2019 Total Power: 31,310 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60-310W
+ 6 mm tempered glass high-transmit
+ 0.76 mm PVB layer
+ 0.21 mm monoycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 2000 x 970 x 14 mm
Matrix: 12 x 5
Transparency: 24%
Power: 310 Wp
Quantity: 101 pcs
Google Maps
Catalogue (pdf)
Japan
2018
05-Tokyo Airport
Name: Tokyo Airport Location: Tokyo city, Japan Date: 05/2018 Total Power: 120,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
= 9.73 mm
Size: 1750 x 1000 mm
Matrix: 6 x 10
Transparency: 20%
Power: 275 Wp
Quantity: 240 pcs
2012
09-Rissho University
Name: Rissho University Location: Tokyo city, Japan Date: 09/2012 Total Power: 3,960 Wp
PV PANEL-1
SI-ESF-M-BIPV-CT-P156-48
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 10 mm tempered glass
= 17.73 mm
Size:
Matrix: 6 x 8
Transparency: 60%
Power: 160 Wp
Quantity: 10 pcs
PV PANEL-2
SI-ESF-M-BIPV-CT-P156-42
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 10 mm tempered glass
= 17.73 mm
Size:
Matrix: 6 x 7
Transparency: 60%
Power: 140 Wp
Quantity: 10 pcs
PV PANEL-3
SI-ESF-M-BIPV-CT-P156-36
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 10 mm tempered glass
= 17.73 mm
Size:
Matrix: 6 x 6
Transparency: 60%
Power: 120 Wp
Quantity: 8 pcs
Kuwait
2022
08-BIPV-Parking-Porsche & VW dealership
Name: Skylights Location: Kuwait city Date: 07/2020 Total Power: 82,150 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-48-1C
+ 4 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 4 mm tempered glass
+ 15 mm air chamber
+ 5 mm Low-E glass
+ 0.76 mm PVB layer
+ 5 mm tempered glass
= 35 mm
Size: 2300 x 1025 mm
Matrix: 12 x 4
Transparency: 50%
Power: 250 Wp
Quantity: 200 pcs
Catalogue (pdf)
07-BIPV-Skylight-Porsche & VW dealership
Name: Parkings Location: Kuwait city Date: 07/2020 Total Power: 50,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-60
+ 8 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 8 mm tempered glass
= 17.73 mm
Size: 1000 x 1800 mm
Matrix: 6 x 10
Transparency: 18%
Power: 310 Wp
Quantity: 265 pcs
Catalogue (pdf)
2021
06-BIPV-SAAF University
Name: Building J-Roof Location: Kuwait city Date: 06/2021 Total Power: 20,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P156
+ 8 mm tempered glass high-transparency
+ 1.52 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 1.52 mm PVB layer
+ 8 mm tempered glass
= 19.25 mm
Size: various
Matrix: various
Transparency: 60%
Power: various Wp
Quantity: 70 pcs
Catalogue (pdf)
2020
10-BIPV-SAAF University
Name: Building H-Roof Location: Kuwait city Date: 10/2020 Total Power: 20,000 Wp
PV PANEL
SI-ESF-M-BIPV-CT-P156
+ 8 mm tempered glass high-transparency
+ 1.52 mm PVB layer
+ 0.21 mm polycrystalline pv cells 156x156 mm
+ 1.52 mm PVB layer
+ 8 mm tempered glass
= 19.25 mm
Size: various
Matrix: various
Transparency: 60%
Power: various Wp
Quantity: 70 pcs
Catalogue (pdf)
Thailand
2021
08-BIPV-Curtain Wall
Name: Facade Location: Thailand Date: 08/2021 Total Power: 1,665 Wp
PV PANEL
SI-ESF-M-BIPV-CT-M156-40
+ 6 mm tempered glass high-transparency
+ 0.76 mm PVB layer
+ 0.21 mm monocrystalline pv cells 156x156 mm
+ 0.76 mm PVB layer
+ 6 mm tempered glass
= 13.73 mm
Size: 1000 x 1600 x 14 mm
Matrix: 5 x 8
Transparency: 40%
Power: 185 Wp
Quantity: 9 pcs
Catalogue (pdf)
